Description
Directions
- Remove the injector
- Select cutter size, attach to the Centring Pilot and tighten the hex screw
- Place the cutter into the injector recess
- Attach the T Bar to the Pilot and apply downward pressure while rotating in a clockwise direction
- Add lubricant to the teeth of the cutter to reduce chattering and produce a clean finish
- Remove the seat cutter and clean the recess
- Clean the seat and remove all swart
Cutter Sizes
Ø15 x Ø19mm Flat Reamer
Ø17 x Ø17mm Flat Reamer
Ø17 x Ø19mm Flat Reamer
Ø17 x Ø17mm Angled Reamer
Ø17 x Ø21mm Angled Reamer

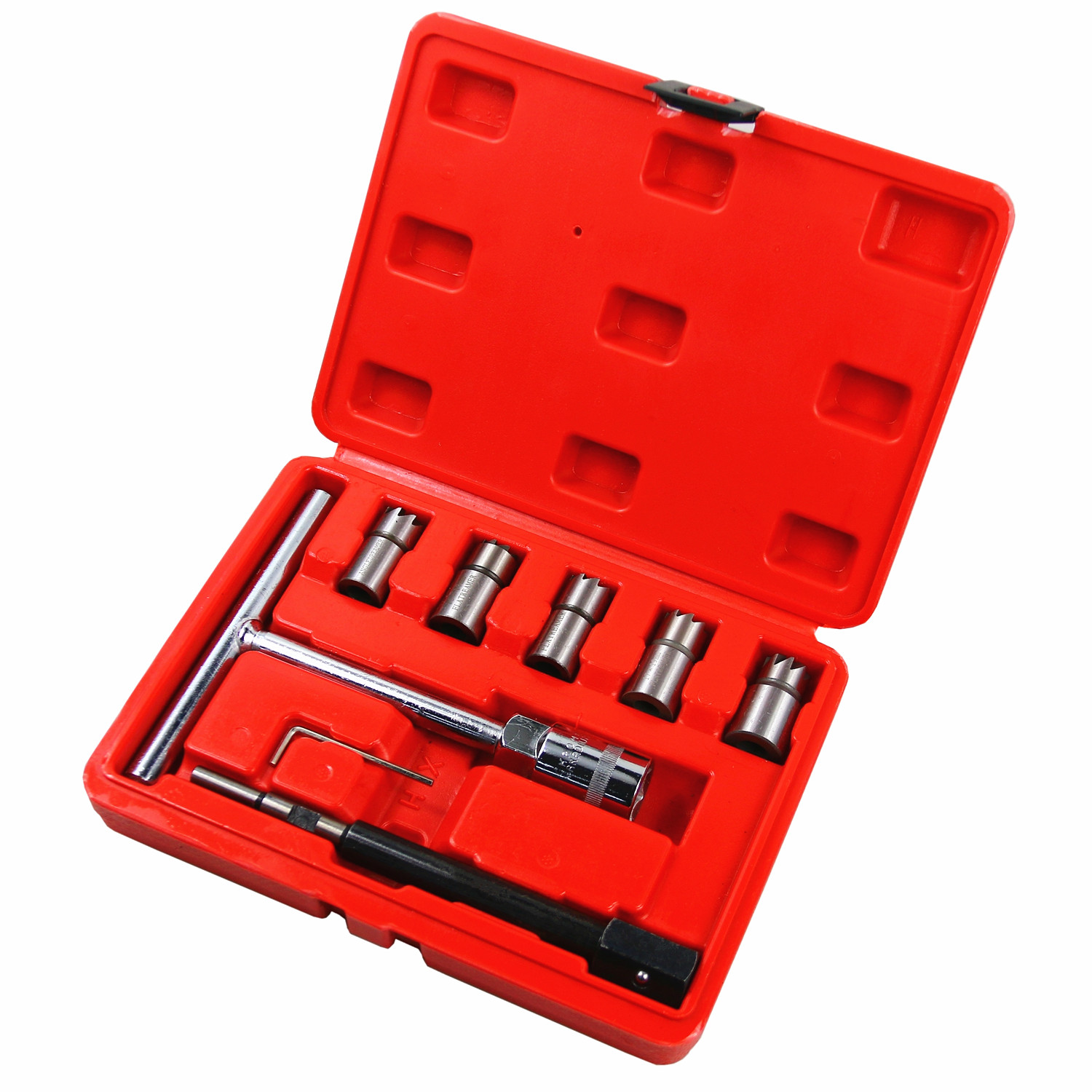

Package Include
- 5x High Quality Cutting Tools
- 1x T Handle

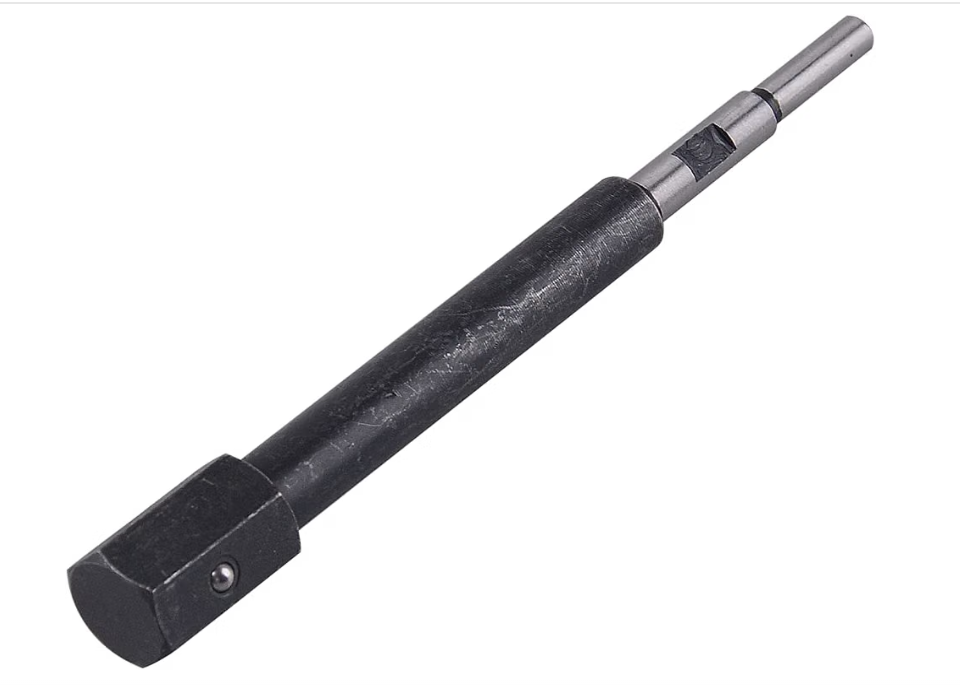

- 1x Centring Pilot
- 1x Hex Key
